Mini Project: QRIS Payments for GB Toolkit

🧠 Why I Built This Mini Project

This wasn’t originally planned as a full payment system — it started as a small internal task to help my coworker who was preparing the GB Toolkit.

The goals were simple:

• Make it easy for partners, educators, and organizations to donate and access the toolkit
• Ensure the payment flow works smoothly
• Automatically deliver toolkit files digitally
• Reduce manual follow-ups or email chains
• Keep everything low-maintenance for the team

But as I started building the pieces — payment, QRIS, download automation — the mini project naturally grew into a more complete, reliable system.

What began as a favor to support a coworker eventually turned into a solid micro-product powering GB Toolkit distribution.

🧩 Architecture Overview

Here’s what the system does:

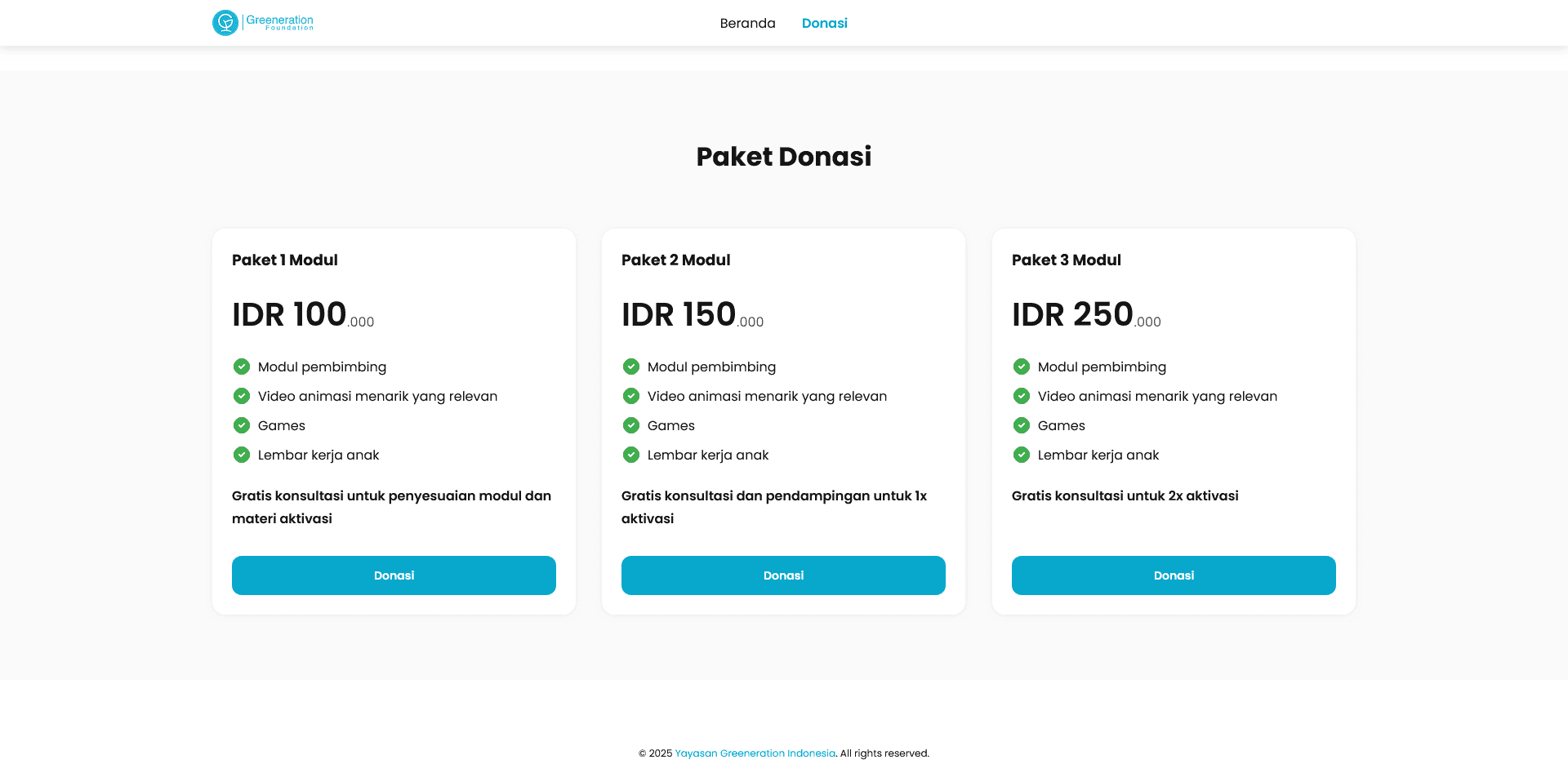

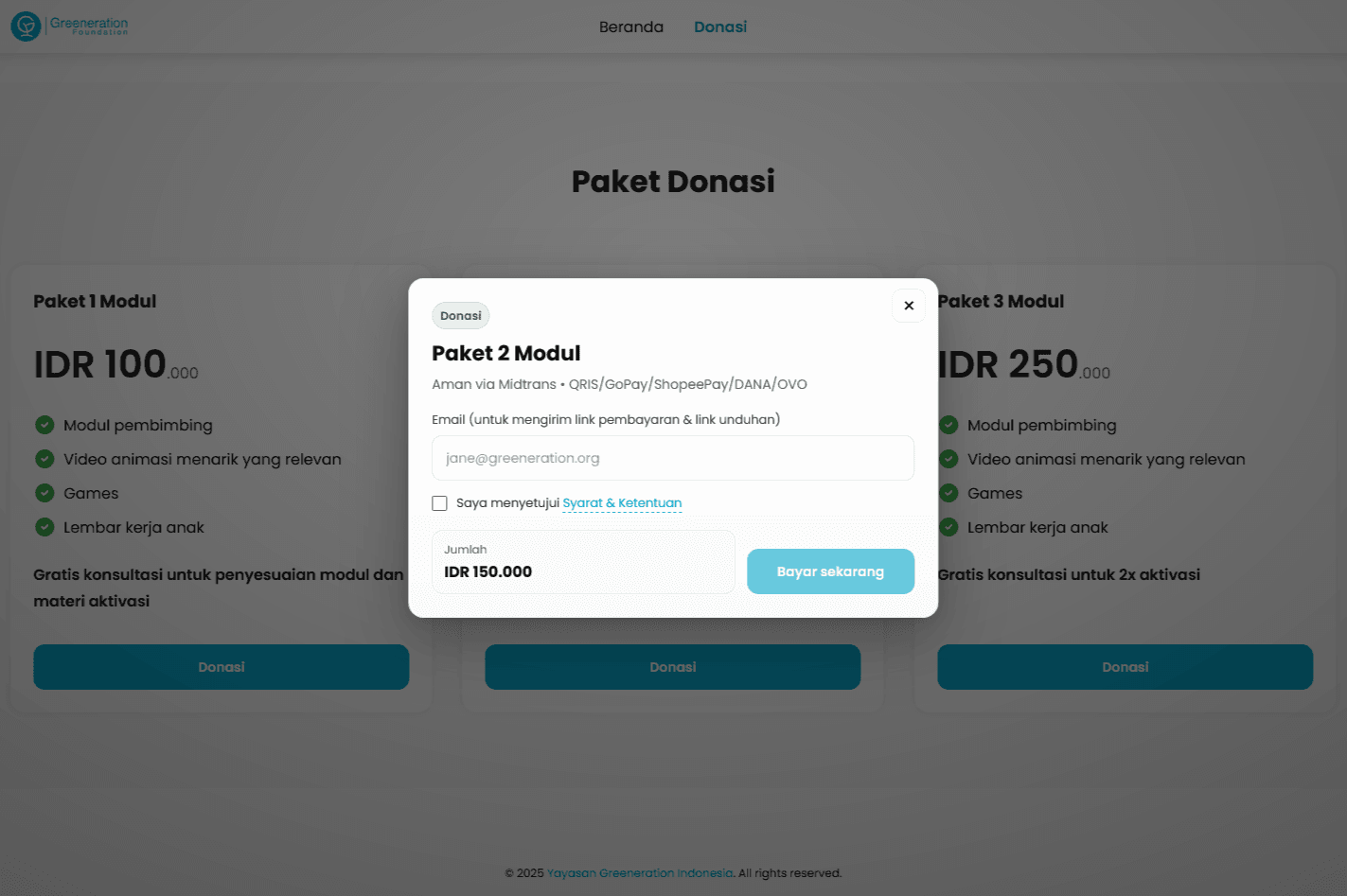

1. User chooses package/amount

• Enters email
• Accepts Terms & Conditions
• Clicks “Bayar Sekarang”

2. Next.js API route creates a Midtrans charge

• Returns qr_string (for QRIS)
• Saves order to DB
• Sends a payment instruction email

3. User scans QR using GoPay/ShopeePay/DANA/OVO

• Midtrans notifies our backend via webhook

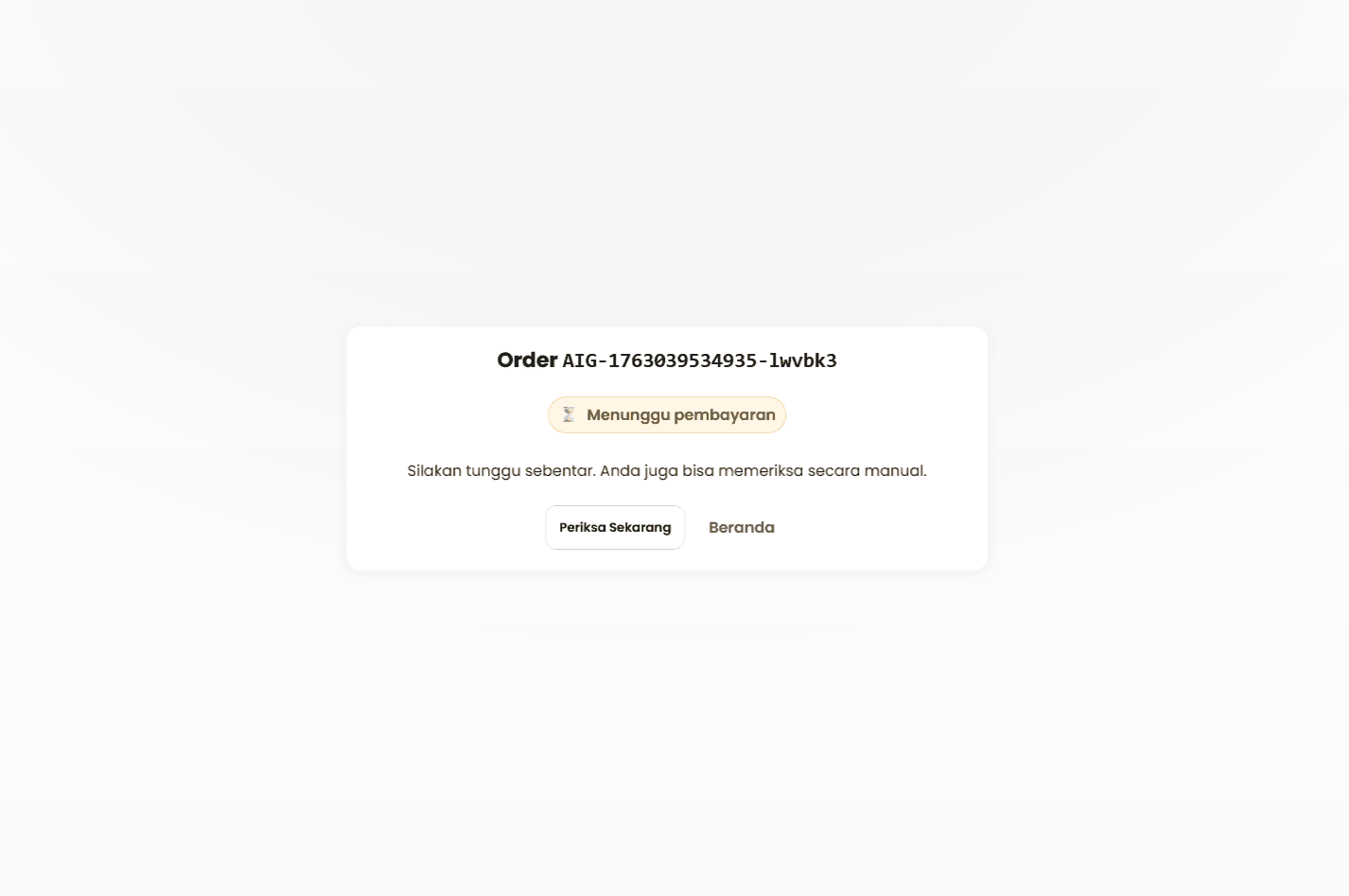

4. Success page polls for status

• When status = “paid”, auto-generates a single-use download token

5. User receives a second email

• Including secure download link
• Link expires after X minutes
• Can be used only once

Simple, robust, and works well on mobile.

⚙️ 1. Creating the Midtrans Charge (QRIS)

Here’s the simplified server endpoint:

// /api/create-charge

import { NextRequest } from 'next/server';
import { createOrder, updateOrderFields } from '@/lib/db';
import { sendPaymentEmail } from '@/lib/email/payment';

export async function POST(req) {
  const { amount, itemName, buyer_email } = await req.json();
  const order_id = `AIG-${Date.now()}-${Math.random().toString(36).slice(2, 8)}`;

  await createOrder({
    order_id,
    amount,
    item_name: itemName,
    buyer_email,
    status: 'pending',
  });

  const payload = {
    payment_type: 'qris',
    transaction_details: { order_id, gross_amount: amount },
    customer_details: { email: buyer_email },
  };

  const serverKey = process.env.MIDTRANS_SERVER_KEY;
  const auth = Buffer.from(`${serverKey}:`).toString('base64');

  const r = await fetch('https://api.sandbox.midtrans.com/v2/charge', {
    method: 'POST',
    headers: {
      Authorization: `Basic ${auth}`,
      'Content-Type': 'application/json',
    },
    body: JSON.stringify(payload),
  });

  const data = await r.json();
  await updateOrderFields(order_id, { midtrans_response: data });

  if (buyer_email) {
    const midtransUrl = data.actions?.[0]?.url || data.payment_url;
    await sendPaymentEmail({
      to: buyer_email,
      orderId: order_id,
      midtransUrl,
      itemName,
      amount,
    });
  }

  return new Response(JSON.stringify({ ok: true, midtrans: data, order_id }));
}

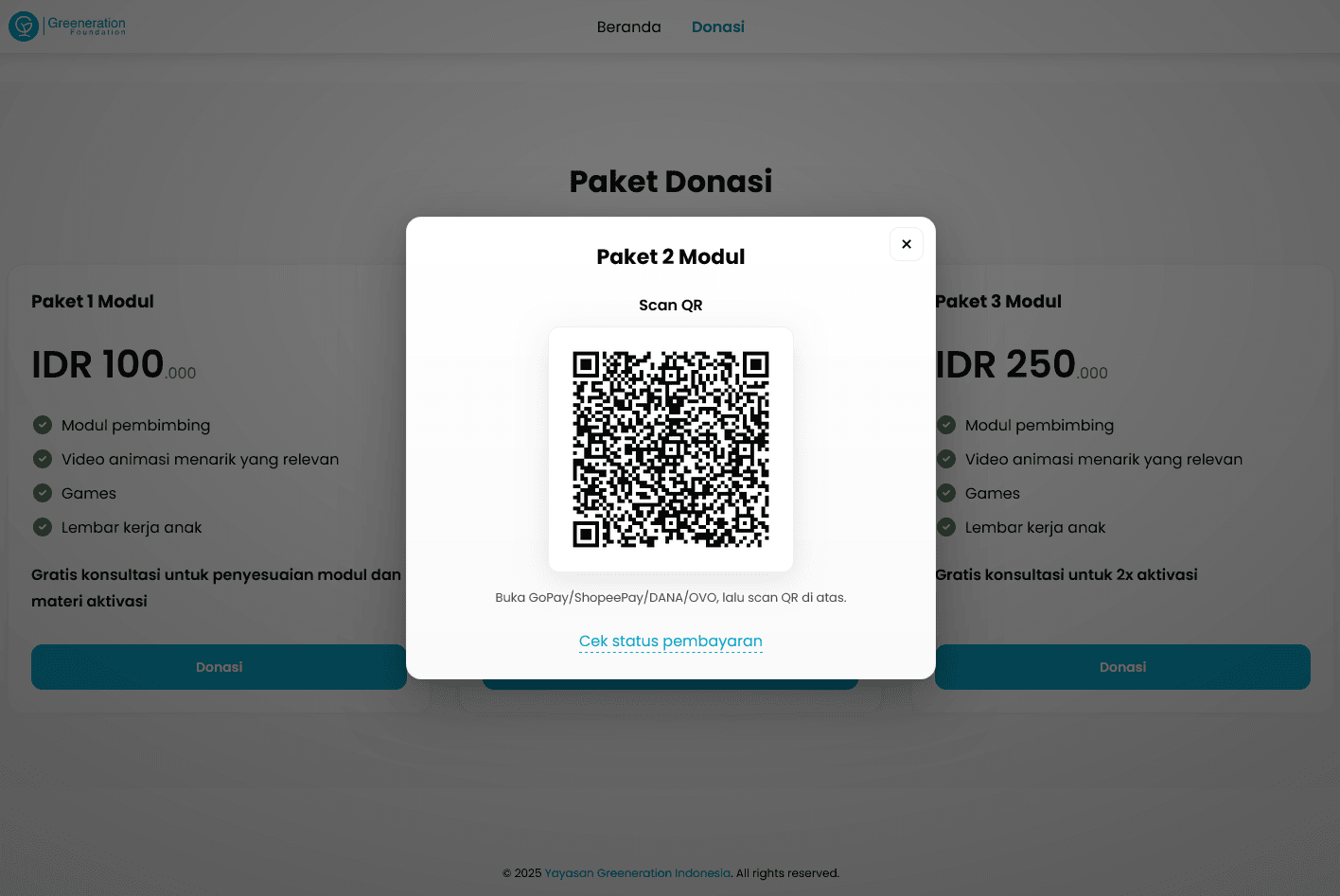

This returns the QR string, which is rendered inside the modal.

🔄 2. Midtrans Webhook → Updating Order Status

Midtrans calls your server when payment is completed.

// /api/midtrans-notification

export async function POST(req) {
  const body = await req.json();
  const order_id = body.order_id;
  const status = body.transaction_status;

  if (status === 'settlement' || status === 'capture') {
    await updateOrderFields(order_id, {
      status: 'paid',
      paid_at: new Date(),
      midtrans_notification: body,
    });
  }

  return new Response('OK');
}

🔁 3. Success Page Polling + Auto Download Token

The success page polls /api/order-status every few seconds:

useEffect(() => {
  if (status === 'paid' && !downloadLink) {
    createToken(); // auto-generate download link once
  }
}, [status, downloadLink]);

Then the token endpoint:

// /api/create-download-token
const ttl = Number(process.env.DOWNLOAD_TOKEN_TTL_MINUTES || 60);
const token = crypto.randomBytes(32).toString('hex');

await insertDownloadToken({
  token,
  order_id,
  email,
  ttl_minutes: ttl,
});

return { downloadLink: `${base}/api/download?token=${token}` };

📩 4. Automated Emails with Nodemailer

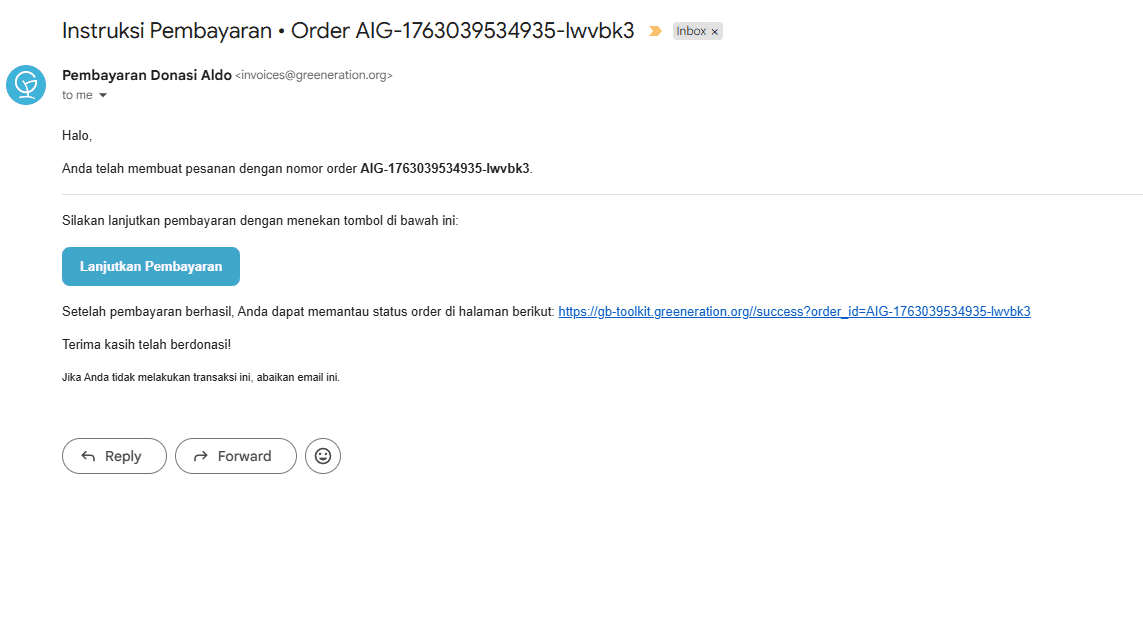

Payment Instruction Email

Sent right after user clicks Pay.

Formatted HTML email:

• Order ID
• Amount
• Payment button
• Fallback link
• “If you didn’t request this, ignore.”

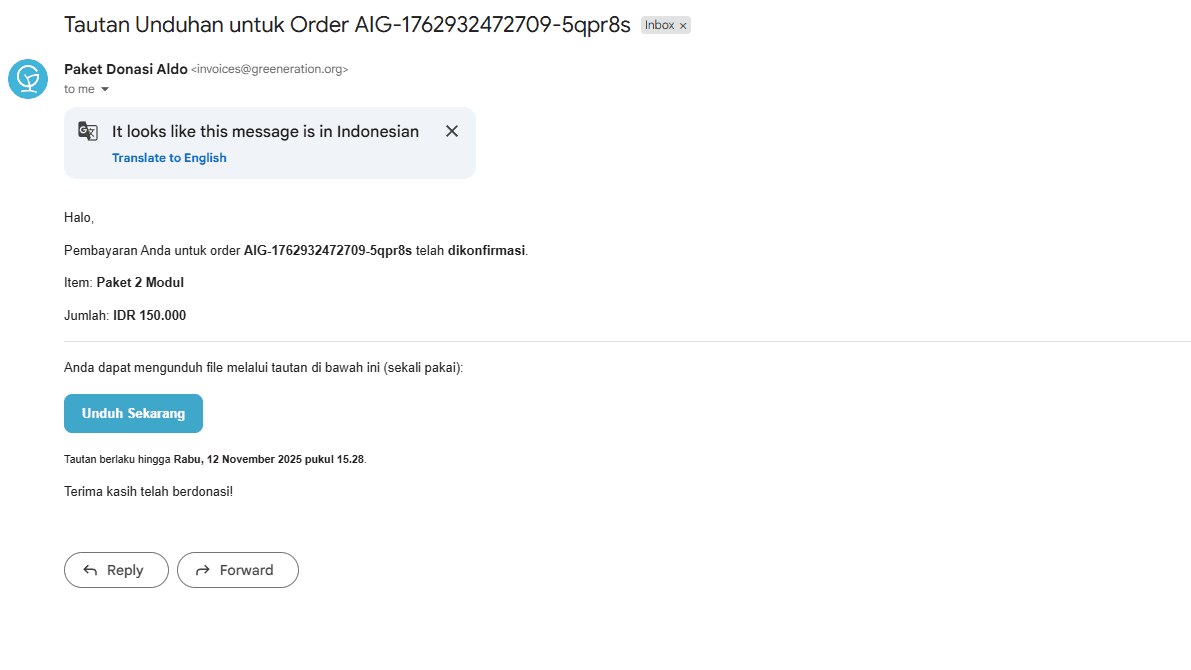

Download Link Email

Sent only after payment = paid.

Includes:

• Item name
• Amount
• Download button
• Expiry timestamp
• Single-use security note

🔐 Security Considerations

I used:

• Single-use tokens
• Expiry timestamps
• QR string never stored in email
• Email HTML escaping
• Webhook validation

🎯 Conclusion

This project ended up as a complete, smooth, reliable donation system:

• Donors get a clean payment flow and instant QR
• Automated emails and simple data in the database
• Users get fast download access without needing accounts
• Fully customizable stack for future products

If you want to integrate Midtrans + QRIS + Next.js for digital products, this approach is flexible, scalable, and production-ready.
